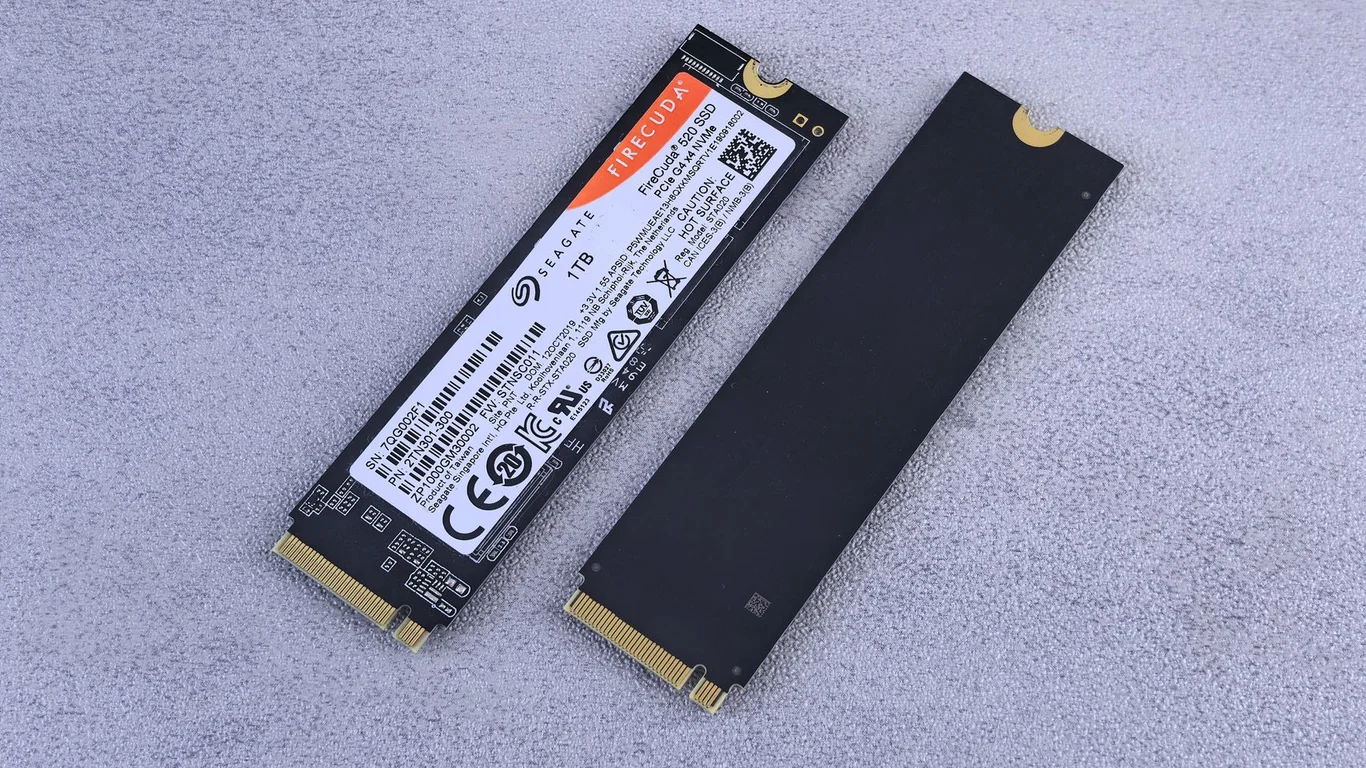

NVMe vs SATA SSD for a NAS: When the Speed Actually Matters
10 min read
1,880 words
Introduction
If you’re building or upgrading a NAS, the choice between NVMe and SATA SSDs feels like a no-brainer on paper: NVMe delivers 2,000–7,000 MB/s versus SATA’s hard 550 MB/s ceiling. But in a real-world NAS, your network—usually gigabit Ethernet (125 MB/s) or 2.5GbE (~300 MB/s)—bottlenecks most of that raw speed for file transfers. This guide cuts through the specs to answer the only question that matters: when does NVMe’s speed actually translate to a faster, more responsive NAS, and when does SATA SSD do the job for far less money?
You’ll get a clear breakdown of the performance gap, the network bottleneck reality, the specific workloads where NVMe genuinely helps (cache, VMs, databases), and the compatibility traps that can waste your money. By the end, you’ll know exactly which SSD type fits your build, your budget, and your actual use case.
NVMe vs SATA SSD: The Raw Performance Gap (and Why It Rarely Matters for NAS)
The headline numbers are dramatic. A typical NVMe SSD hits sequential read speeds of 3,000–7,000 MB/s on a PCIe 3.0 or 4.0 link. A SATA SSD peaks at around 550 MB/s—a hard limit set by the SATA III interface itself. Random I/O (small file operations) is even more lopsided: NVMe can handle 500,000–1,000,000 IOPS, while SATA SSDs top out around 90,000–100,000 IOPS.
Here’s the catch: your network is the bottleneck for most file-level access. If you’re copying a large video file from your NAS to a laptop over gigabit Ethernet, both a SATA SSD and an NVMe SSD will max out at 110–118 MB/s—the network limit. The NVMe drive isn’t working any harder. Even 2.5GbE tops out at around 300 MB/s, still well under SATA’s 550 MB/s ceiling.
The one place SATA SSD’s 550 MB/s limit actually matters over a network is when you have a 10GbE or faster connection. At 10GbE (~1,250 MB/s), a SATA SSD becomes the bottleneck, and NVMe’s speed begins to show. For 99% of home NAS setups on gigabit or 2.5GbE, SATA SSD performance is already overkill for file transfers.
Does NVMe Matter for NAS? Where It Genuinely Helps
NVMe’s advantage isn’t in moving large files over the network—it’s in workloads that run on the NAS itself, where the drive-to-CPU latency matters. These are the scenarios where NVMe’s low latency and high IOPS make a real, measurable difference.
NVMe as a Cache Tier (Read or Write Cache)
In ZFS-based systems like TrueNAS, NVMe SSDs can serve as a read cache (L2ARC) or a write cache (ZIL/SLOG). A fast NVMe drive for write cache can dramatically improve synchronous write performance—critical for NFS datastores or database transactions. For read cache, NVMe’s speed helps accelerate repeated access to hot data, though the benefit depends heavily on your workload’s data reuse ratio.
When NVMe Cache Helps
- Synchronous writes (NFS, iSCSI, databases)
- High random I/O workloads (multiple VMs)
- Frequent access to a small hot dataset
When SATA Cache Is Fine
- Asynchronous writes (most SMB/CIFS file copies)
- Sequential media streaming
- Large datasets with low reuse ratio
VM and Container Storage
If you’re running virtual machines or Docker containers directly on your NAS (common with Proxmox, TrueNAS Scale, or Unraid), NVMe storage for the VM/container pool is a genuine upgrade. VM disk I/O is latency-sensitive—NVMe’s sub-10-microsecond access times versus SATA’s 50–100 microseconds translates to snappier UI responsiveness and faster boot times for your VMs.
Database and Application Workloads
Running a database (PostgreSQL, MariaDB, or even a media server’s metadata database) on NVMe storage reduces query latency noticeably. SATA SSDs handle this fine for small databases, but as your dataset grows and concurrent queries increase, NVMe’s IOPS advantage becomes measurable.
NVMe vs SATA NAS: The Compatibility Trap
Not every M.2 slot on a NAS motherboard is wired for NVMe. Many consumer and entry-level NAS motherboards (especially older Intel Celeron-based boards) have M.2 slots that are physically keyed for NVMe but electrically wired for SATA only. Plugging an NVMe drive into such a slot simply won’t work—no detection, no boot.
Always check your NAS motherboard’s specifications for M.2 slot type. Look for “PCIe NVMe” or “M Key” support. If the manual says “M.2 SATA” or “B Key only,” you cannot use an NVMe drive in that slot. This is a common gotcha on boards like the ASRock J5040-ITX or older Supermicro X10 boards.
Conversely, some M.2 slots support both NVMe and SATA drives, but the BIOS/UEFI must be configured accordingly. If you’re building a custom NAS, verify the motherboard’s storage lanes: a PCIe 3.0 x4 slot delivers ~4 GB/s for NVMe, while a SATA M.2 slot is limited to the same 550 MB/s as a 2.5-inch SATA drive. In most cases, if you’re buying a prebuilt NAS (Synology, QNAP, Asustor), the M.2 slots are NVMe-only unless explicitly stated otherwise.
Power Draw and Heat Trade-Offs
NVMe drives under sustained load can draw 6–10W, while SATA SSDs typically consume 2–5W. In a NAS that runs 24/7, this difference adds up: a single NVMe drive at 8W versus a SATA SSD at 3W costs roughly $5–$10 more per year in electricity (at $0.12/kWh). That’s minor, but heat is a bigger concern. NVMe drives can hit 70–80°C under continuous write workloads, especially in poorly ventilated NAS chassis. SATA SSDs rarely exceed 50–60°C.
For SATA SSDs, the lower power draw and cooler operation make them a safer choice for dense NAS enclosures with limited airflow—like a 4-bay or 8-bay chassis where drives are packed tightly.
Cost Comparison: NVMe vs SATA SSD for NAS
| Drive Type | Cost per TB (2026) | Typical Capacity | Best Use Case in NAS |
|---|---|---|---|
| SATA SSD (2.5-inch) | $50–$80/TB | 240GB–4TB | App pool, VM storage, cold cache |
| NVMe SSD (M.2) | $60–$120/TB | 250GB–8TB | Write cache, hot VM pool, database |
| NVMe with DRAM | $80–$150/TB | 500GB–4TB | High-end write cache, ZFS SLOG |
SATA SSDs are cheaper per terabyte, especially at 1TB and 2TB capacities. NVMe drives command a premium, but the gap has narrowed—budget NVMe drives (like the TeamGroup MP33 or Crucial P3) are now only 20–30% more expensive per TB than comparable SATA drives. However, for pure NAS file serving over gigabit Ethernet, that extra cost buys you zero speed improvement.
How to Choose: NVMe vs SATA SSD for Your NAS Build
Here’s a decision framework based on your specific setup and needs.
Scenario 1: Gigabit Ethernet, File Serving Only
Pick SATA SSD. You will never see a speed difference between SATA and NVMe for SMB/NFS file transfers. Save the money and invest it in more capacity or a faster network upgrade (2.5GbE or 10GbE) if you truly need more throughput.
Scenario 2: 2.5GbE or 10GbE Network
Consider NVMe for cache or app pool. At 10GbE, SATA SSDs become the bottleneck for sequential transfers. Use a pair of NVMe drives in a RAID 1 for your VM/container pool, and keep SATA SSDs or HDDs for bulk storage.
Scenario 3: Running VMs or Containers Directly on the NAS
NVMe is worth the premium. The latency reduction for VM disk I/O is noticeable, especially with multiple concurrent VMs. A single 500GB–1TB NVMe drive for the VM datastore, paired with SATA SSDs or HDDs for media storage, is a balanced approach.
Scenario 4: ZFS Write Cache (SLOG)
NVMe with power-loss protection is ideal. A SATA SSD can work as a ZFS SLOG, but NVMe’s lower latency improves synchronous write performance more. Look for an NVMe drive with DRAM and power-loss protection (like the Samsung 970 PRO or a used Intel Optane 900P) for best results.
If you’re still weighing CPU options for your NAS, the Intel N100 vs N305 comparison covers how these low-power chips handle NVMe and SATA storage. For managing power draw across multiple drives, see how to reduce NAS power consumption. And if you’re deciding between TrueNAS and Unraid, the TrueNAS vs Unraid guide explains which OS handles cache tiers better.
Bottom Line: Which SSD Should You Buy for Your NAS?
For 90% of home NAS builders, a SATA SSD is the right choice. It’s cheaper, cooler, and fully adequate for file serving over gigabit or even 2.5GbE networks. Spend the money you save on more capacity or a faster network card.
Buy an NVMe SSD only if you meet at least one of these criteria: you have a 10GbE or faster network, you run VMs or containers directly on the NAS, you need a low-latency write cache for database workloads, or you’re building a high-end TrueNAS system where every millisecond counts. For everyone else, SATA SSD delivers the same real-world performance at a lower cost.
Remember that RAID is not a backup—always maintain separate backups of critical data.
Frequently Asked Questions
Is NVMe worth it for a home NAS?
For most home NAS users running gigabit Ethernet and serving files to a few devices, NVMe is not worth the extra cost. The network bottleneck limits file transfer speeds to around 110–125 MB/s, which a SATA SSD handles easily. NVMe becomes worth it if you have a 10GbE network, run virtual machines on the NAS, or need low-latency storage for database workloads. In those cases, the speed premium (typically $20–$60 more per TB) translates to real performance gains.
Will NVMe make my file transfers faster over the network?
No, not if your network is slower than the SSD. Gigabit Ethernet caps at about 125 MB/s, and 2.5GbE caps at around 300 MB/s. A SATA SSD’s 550 MB/s ceiling is already above both of those, so switching to NVMe won’t make file transfers any faster. The only exception is if you have a 10GbE or faster network—then NVMe’s speed can be utilized. For most home networks, the SSD is never the bottleneck; your network is.
Can I put an NVMe drive in any M.2 slot on my NAS?
Not always. Some M.2 slots on NAS motherboards are wired for SATA only, even if they physically accept an NVMe keyed drive. Always check your motherboard’s manual or specifications: look for “PCIe NVMe” or “M Key” support. If the slot is labeled “M.2 SATA” or “B Key only,” an NVMe drive will not work. This is a common trap on older Intel Celeron and Atom-based boards. Prebuilt NAS units (Synology, QNAP) typically have NVMe-only M.2 slots, but verify the model’s specs before buying.
Does NVMe run hotter than SATA in a NAS?
Yes, NVMe drives generate more heat under load—typically 6–10W versus 2–5W for SATA SSDs. In a confined NAS chassis with limited airflow, NVMe drives can reach 70–80°C during sustained writes, which can trigger thermal throttling. SATA SSDs rarely exceed 50–60°C. If you use NVMe in a NAS, ensure the M.2 slot has some airflow, or add a small heatsink (available for $5–$15). For dense multi-drive enclosures, SATA SSDs are safer and run cooler.
Last verified: July 09, 2026. Specifications cross-checked against manufacturer documentation where available.
